Made In Taiwan
Cutting Equipment
Equipment for the cutting process in the production
Straight Knife Cutting Machine
Advanced technology apply to all kinds of fabric.
Portable Cordless Electric Shear
Complete with heavy duty NiCad battery pack and temperature controlled quick change charger.
Cutting Room Supplies
Kits for fix the fabric on the table.
Cloth Marking Drill
Low profile desigh & Telescopic drive shaft allow accurate drilling straight down, with heating attachment, solid state control & horizontal level.
Round Cutter
Semi-round square & hexagon knife
Extra Heavy Duty Auto End Cutter
Extra heavy duty auto end cutter, can cut up to 50mm thickness material.
Laser Line Marker
For the special pattern fabrics, the laser can assist in aligning the pattern accurately when stacking the fabric.
Cloth Marking Drill
Low profile desigh & Telescopic drive shaft allow accurate drilling straight down, with heating attachment, solid state control & horizontal level.
Mini Cutter
Mini cutter
Manual End Cutter
With long arm type easy to cut.
Cloth Marking Drill
Low profile desigh & Telescopic drive shaft allow accurate drilling straight down, with heating attachment, solid state control & horizontal level.
Straight Knife Cuttter
MA-150U
MA-200H
MA-200U
Straight Knife Cutter
Round Cutter
Semi Round Square & Hexagon Knife
MB-100
MB-90C
MB-110
MB-90
Round Cutter
ALLSTAR
Mini Cutter's Master
AS-100K
AS-100LH
Mini Cutter's Master
Portable Cordless Electric Shear
Complete with heavy duty NiCad battery pack and temperature controlled quick charge charger
MB-60 (60mm Round Knife Cutter)
Separate parts available:
#MB-60-24 10-side round knife 60mm(2-5/16")
#MB-60-18 Counter Knife (carbide tipped) assembly
#MB-60-51 NiCad battery pack (9.6 VDC)
#MB-60-52 Battery charger 115V
#MB-60-52 Battery charger 230V
#MB-60-29 Sharpening Stone
MB-60-51
MB-60-52
1. This portable cordless electric shear makes cutting easier, faster and produces a clear cut of single and low lays.
2. A 60 mm 10 side rotary blade and carbide stationary blade becomes a self-sharpening combination.
3. The heart of this shear is its powerful 9.5 volt heavy duty motor powered by a NiCad battery pack. Rechargeable with 110/120 volts or 220/240 volts.
4. One hour recharge can cut approximately 800 feet of cloth or 300 feet of carpet. For continuous operation keep a second battery in the charger.
5. Knife guard designed for safety protected. The shear with battery attached weights only 1.2 KGS and 32 CM (12 3/4") long.
MB-60X (60mm Round Knife Cutter)
Separate parts available:
#MB-60-24 10-side round knife 60mm(2-5/16")
#MB-60-18 Counter Knife (carbide tipped) assembly
#MB-60-51 Li-Ion battery pack (11 VDC)
#MB-60-52 Battery charger 100~240V
#MB-60-29 Sharpening Stone
MB-60X-51
MB-60X-52
1. This portable cordless electric shear makes cutting easier, faster and produces a clear cut of single and low lays up to 12mm.
2. A 60 mm 10 side rotary blade and carbide stationary blade becomes a self-sharpening combination.
3. The heart of this shear is its powerful 11 volt heavy duty motor powered by a NiCad battery pack. Rechargeable with 110/120 volts or 220/240 volts.
4. One hour recharge can cut approximately 1000 feet of cloth or 400 feet of carpet. For continuous operation keep a second battery in the charger.
5. Knife guard designed for safety protected. The shear with battery attached weights only 1.2 KGS and 32 CM (12 3/4") long.
Cordless Cutter
Manual End Cutter
End Cutter
MT-260
Mod. CP-109 Cloth Press (Optional)
MT-260LN
End Cutter
Extra Heavy Duty Automatic End Cutter
Can be fit anywhere
Idea for thick and heavy materials
Control box for automatic model
* Extra heavy duty automatic end cutter, can be cut up tp 50mm thickness.
* Precision cutting for bedding, carpet, most kinds of fabric and upholstery.
* Can be used on cutting table and easy installation for most kind of textile machinery.
* Tracks up to 3 meters.
* Manual Model DC-745 is optional
* Laser projector can be used to help cutting more smooth.
Manual End Cutter
Automatic End Cutter
Cutting Accesories

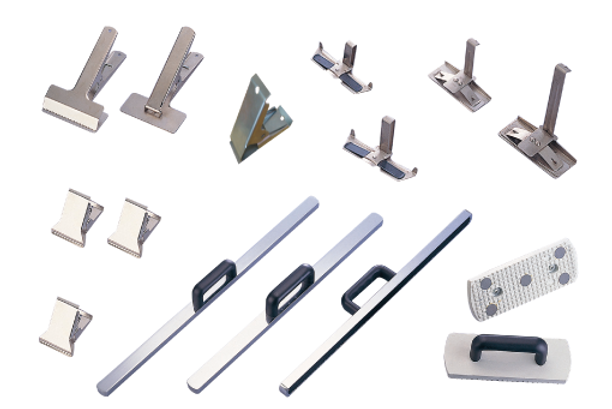

Cutting Room Supplies
CL-80S
CL-70S
CL-6S
CL-4AA
CL-6AA
CL-8AA
CWT-22
CL-12S
CWT-60
CWT-75
Cutting Room Supplies
Cutting Accesories
Laser Liner Marker
Laser Projector with Magnetic Holder
Laser Trolley Projector
Movable Trolley With All-Direction Bracket & Laser Light Holder
Electric Rail (Length: 1m, 2m 3m)
LD-073 Laser Light (Linear)
* For special pattern fabrics, laser light is used when stacking fabrics so that each layer of fabric can be accurately aligned to achieve precise cutting.
* Use high-performance and small laser componets imported from Japan.
* The new design with circuit protection device can extended the service life.
* The warranty period is 1 year.
* After installation, the laser light can be adjusted freely in 360 degrees.
* Special design for garment factory, single use is linear projection, two used together can form cross projection.
Lase Liner Marker
Cutting Accesories
Cloth Marking Drill

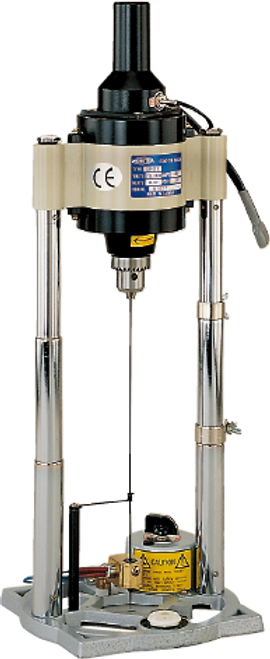

SM-201L
Cloth Marking Drill
Cloth Unwinding Rack
CR-72
Laser Projector with Magnetic Holder
